Searching for Device

Introduction

Industrial Edge Compatibility Checker allows users to list compatible and incompatible application(s) with their version(s), for the specific version of the selected device.

Steps

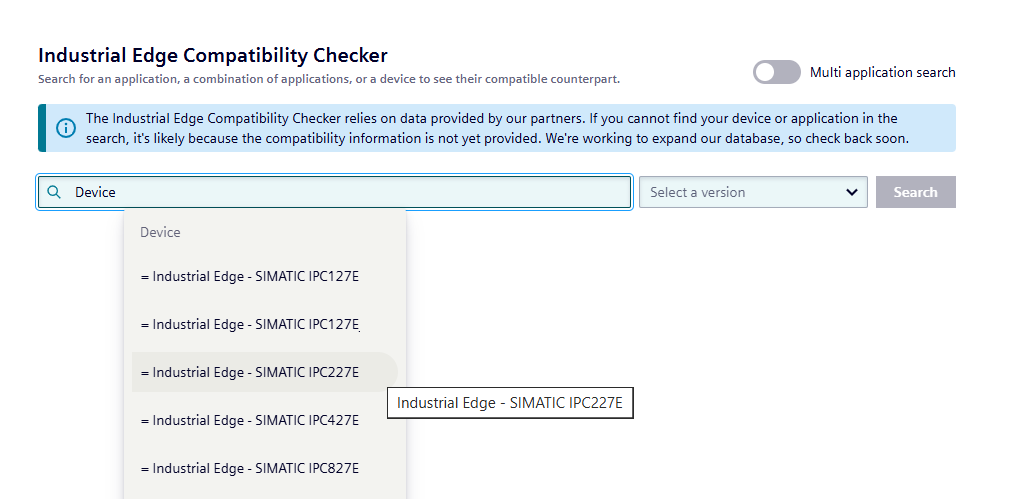

1. Search by providing the Device name and selecting its firmware version to find the list of compatible application(s) and their version(s).

   • Device Name selected

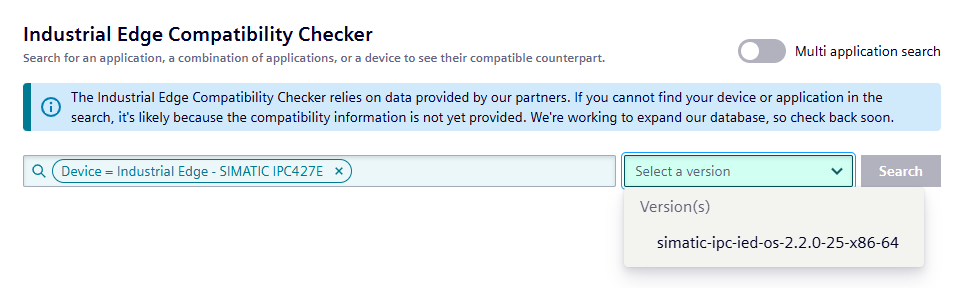

   • Firmware version selected



2. Click Search.

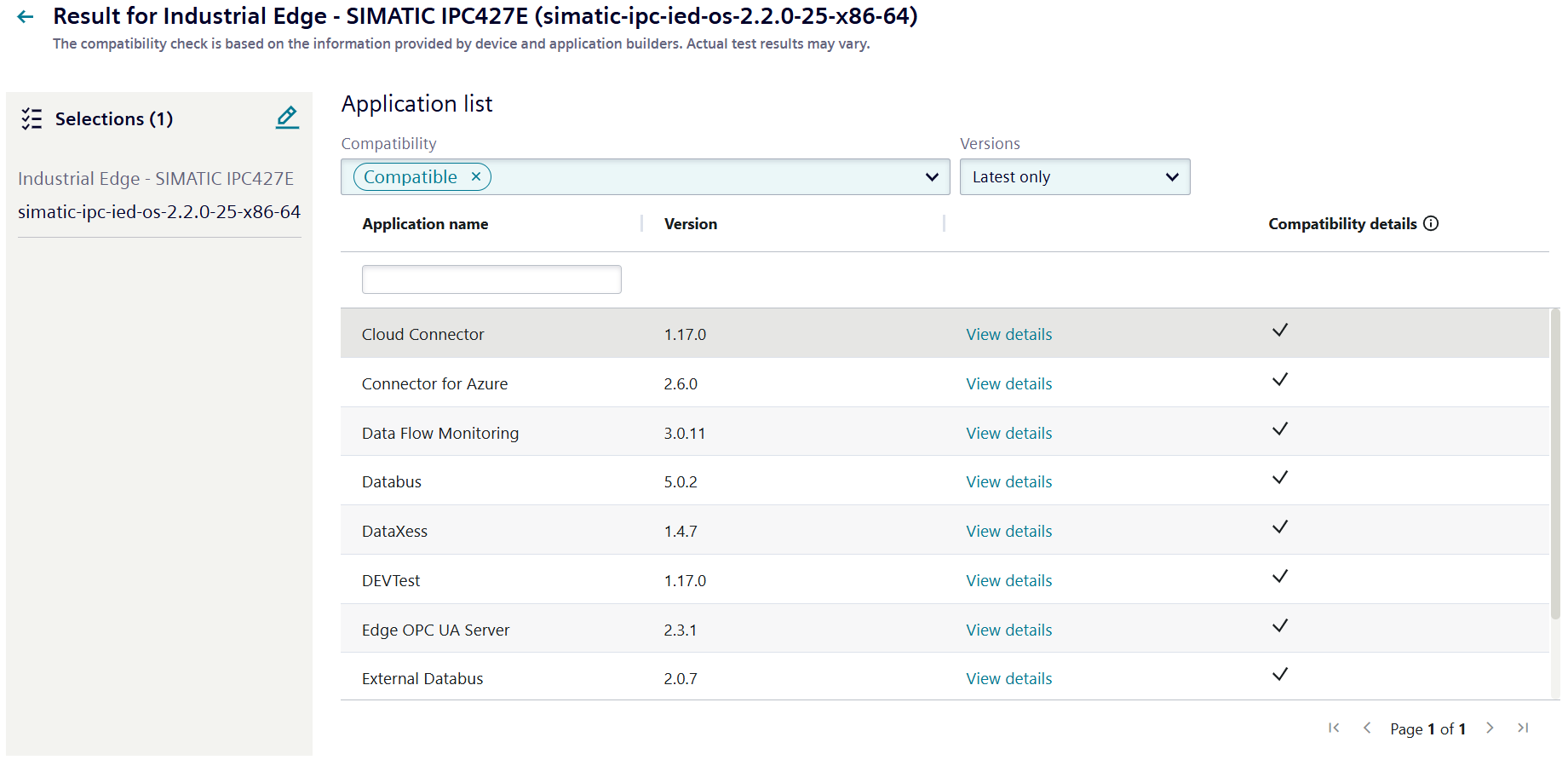

   Displays a list of compatible application(s) with version number(s) for the searched device and version.

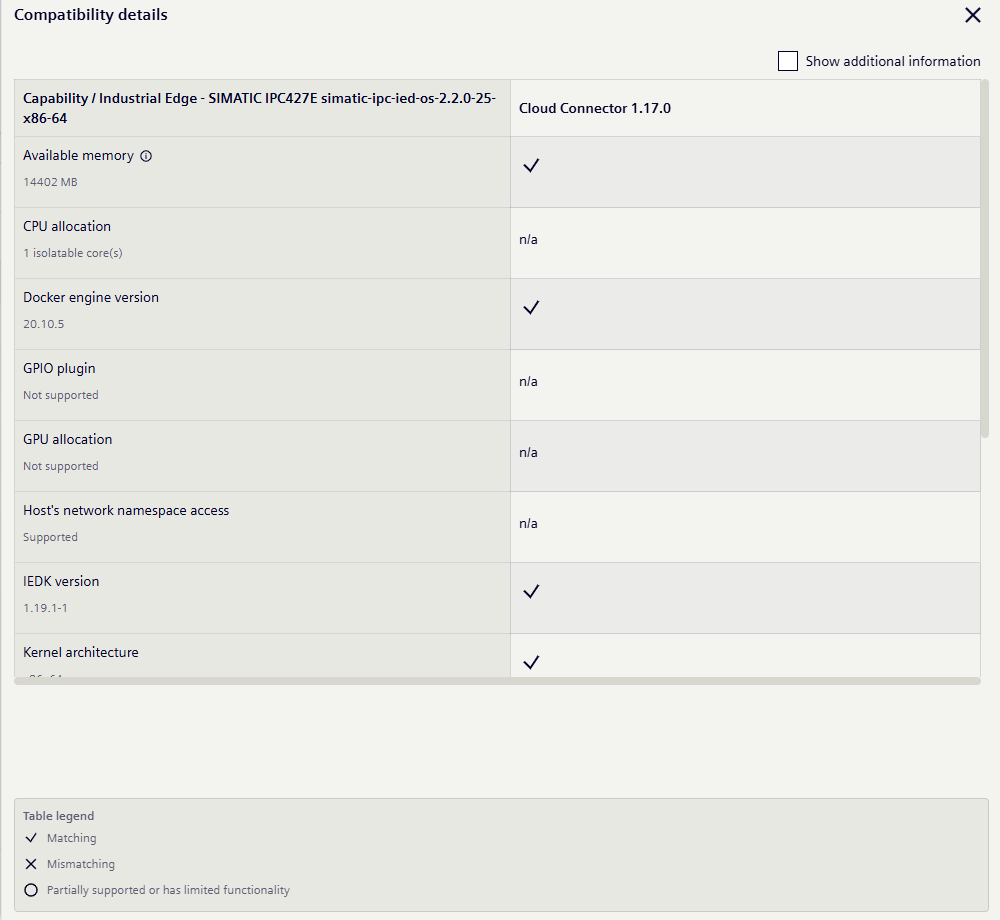

   Click View details

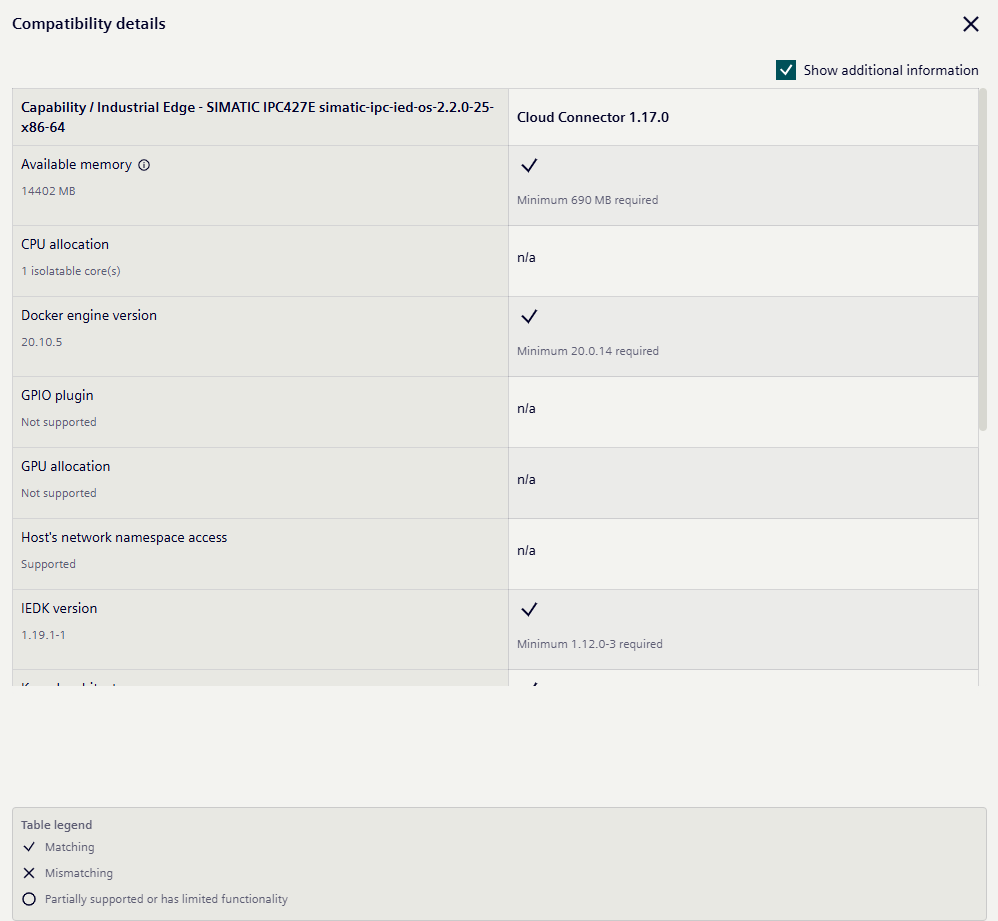

   Select the checkbox next to Show additional information to view detailed information on all the capabilities.



UI Elements	Description
Application Name	Name of the application(s).
Version	Respective version number(s) of the application(s) listed
Compatibility	Allows you to select from the dropdown to get application details based on your requirements: • Compatible: Provides a list of all compatible version(s) of application(s), for the selected device • Partially compatible: Provides a list of all partially compatible version(s) of application(s), for the selected device • Incompatible: Provides a list of all incompatible version(s) of application(s), for the selected device
Versions	Allows you to select from the dropdown to get application details based on your requirements: • Latest only: Provides a list of only the latest compatible version of application(s), for the selected device • All: Provides a list of all the compatible version of application(s), for the selected device
View Details	Provides more details on compatibility of individual items for a specific device and selected application. For more information on compatibility items used, refer to: Application Provider Capabilities and Device Builder Capabilities
	The edit icon helps you the edit the search and change selected application(s)/device and its version(s).
Selections	Indicates the number of device selected during the search.
Compatibility details	: The listed application version is partially compatible with the selected device and its firmware version. : The listed application version is fully compatible with the selected device and its firmware version. : The listed application version is incompatible with the selected device and its firmware version.
Table legends	: A partial match of a particular capability between selected application and device. Occurs when the capability is not supported by the device and is optionally required by the application ("optional" flag is set to "true"). This means the application will still work but it may function differently. : A match of a particular capability between selected application and device. : A mismatch of a particular capability between selected application and device.
