Image Connector Applications Interface Specification¶
Version: 1.0.0¶
Contents¶
- Interface Definition of Camera Connectors
- General Definitions
- Topic Structure
- Device Identification
- Messaging
- Vision Connector Image Format
- Camera Operation
- Camera Parameter Configuration
- Application Control
- Application Feedback
Interface Definition of Camera Connectors¶
This document outlines the northbound interface (indicating north in the automation pyramid) of a camera connector application and vision-driven applications. It covers the configuration of a connected camera and the retrieval/streaming of images from this camera for further processing. The southbound interface of the camera connector is defined by the connector provider, dependent on the technology used (GigEVision, Gen<i>Cam, USBVision, etc.), and is therefore not part of this document.
General Definitions¶
To facilitate data transfer between the camera connector and vision-driven applications, the currently supported communication channels are ZeroMQ (ZMQ) and MQTT. For enhanced integration, such as with Siemens Industrial Edge, supplementary interfaces like REST API could also be considered.
The connector application must possess two bind ZMQ ports and/or MQTT configurable connection parameters. These connections will be utilized for setting up the application, configuring the camera, defining image streaming options, and requesting images via software triggers. Images must adhere to the Vision Connector Image Format.
All used ports and servers must be configurable in the application configuration file (for Siemens Industrial Edge applications) and environment variables. The ZMQ ports (defaults: 5555 to REQ/REP and 5556 to PUB/SUB) must be documented in the application documentation.
In the case of MQTT connections, the server, port, user, password, client id and root topic should be configurable within the application.
The connector should be designed to support one or multiple cameras. This support must be thoroughly detailed in the application documentation and should include a dedicated topic structure for each camera.
The scope of this document is to define the interface protocols between vision-driven applications and camera connectivity applications. Communication specifics, camera protocols, camera setup, and application features are beyond the scope of this document.

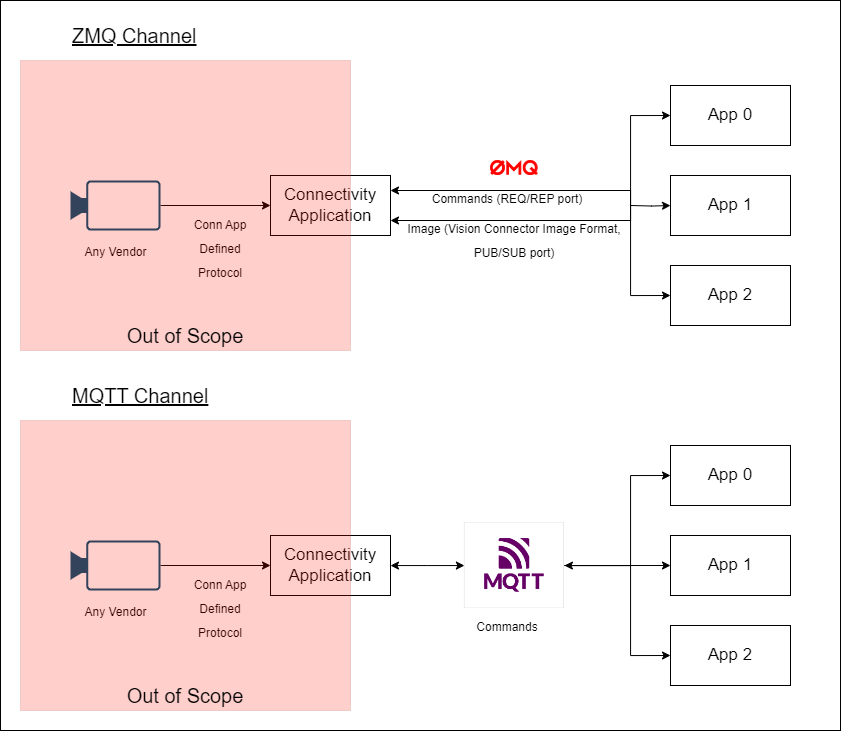

Below is a schematic representation of the defined scope:
Topic Structure¶
ZMQ¶
When using ZMQ connections, the expected structure outlined below:
- To send commands, utilize single-frame messages sent to the REQ/REP port.
- The image streaming topic on the PUB/SUB port: {DeviceID}/stream
- For receiving application feedback, subscribe to topic on the PUB/SUB port: logging
MQTT¶
For MQTT connections, the topic structure is as follows:
- To send commands, publish messages to: {mqttRoot}/request
- For receiving application command responses on: {mqttRoot}/response
- Subscribe to the topic for receiving application feedback: {mqttRoot}/logging
The message content should be formatted in JSON, employing the message field names as property names for each call, as described in the subsequent chapters of this document.
Device Identification¶
To identify a device, the connector application should specify, in its Camera Discovery documentation, the allowed fields for identification. Typically, expected fields include the serial number (SerialNumber field), user identification (UserDefinedName field), IP address (for GigE devices, in the IPAddress field), and MAC address (for GigE devices, in the mac field). While these fields are commonly used, they are not mandatory, may not be available, and the connector application may introduce additional or alternative identification fields.
In the subsequent documentation, the term "DeviceID" refers to the identifying string that was used for a camera device upon opening the it. This exact string will then be used for identifying the opened camera device while it is used and until it is closed again. Only after that the camera device can be opened and used again with a different DeviceID. The value of the DeviceID can be one of the fields returned during the device info (see more details in chapter Open Camera Connection.
Using a different DeviceID for a camera device while it is open, even if it refers to the same device, may lead to errors. Exceptions to this rule are allowed if documented by the application.
Messaging¶
The message exchange will be based on JSON messages. The subsequent sections will outline the minimum content for the message payload, where the fields are properties for the payload JSON, and any additional fields might be utilized as specified in the connector application documentation, in accordance with the vendor's requirements.
For ZMQ, the JSON string payload will be encoded into a UTF-8 single-frame message.
In MQTT messages, the JSON payload serves as the content of the message to be sent.
Vision Connector Image Format¶
To standardize image transfer between camera streaming applications and image-driven applications, the following format shall be used for transferring images. The ZMQ message consists of a multipart message with each frame/part described below.
This message format is prepared to support multiple stream cameras.
Message Envelope
Frame | Field | Description | Type |
---|---|---|---|
1 | topic | Device identification. | Binary String (UTF-8) to identify the device in the following syntax: {DeviceID}/stream |
2 | metadata | Metadata | Binary Metadata JSON (UTF-8) |
3 | image | Image 1 | Binary |
4 ... n | image | Image n – For multi-stream camera | Binary |
Metadata JSON
Field | Optional | Type | Default | Description |
---|---|---|---|---|
version | No | String | 1 | Metadata format version |
count | No | Integer | 1 | Number of images on message |
timestamp | No | String | - | Date and Time string UTF-8 ISO8601. Application host datetime. |
customfields | Yes | String | - | Custom field to be defined by the app creator and handled by the consumers. Might be a simple string or JSON string or else. |
detail | No | Image Detail Object Array | - | Images details |
Image Detail Object
Field | Optional | Type | Default | Description |
---|---|---|---|---|
id | No | String | - | Unique image identifier. Suggested mnemonic format like {camid}_{camstream}_{datetime} |
seq | No | Integer | - | Sequential number for the camera image. Starting at 1, incremented by 1 on each frame grabbed. |
height | No / Yes (encoded formats) | Integer | - | Image Height |
width | No / Yes (encoded formats) | Integer | - | Image Width |
formatns | Yes | String | Genicam | Image format namespace. For genicam pixelformat use Genicam and Compressed for compressed formats. 2 |
format | No | String | - | Image format 1 2 3 |
linepadding | Yes | Integer | 0 | Number of bytes added on the end of byte stream to reach a multiple of 4 bytes. Eg. an image with 61 pixels, mono8, will have a linepadding of 3, filling the stream to reach 64 bytes. |
timestamp | Yes | String5 | - | Clock ticks informed by the camera.4 |
metadata6 | Yes | String | - | Image additional metadata field to be defined by the app creator and handled by the consumers. Might be a simple string or JSON string or else. |
1 For cameras using a Genicam standardized Pixel Format, it is recommended to use the Genicam Naming Convention as described in section 4.35 GenICam_PFNC_2_4.pdf.
2 Additional values can be supported once described in the application documentation.
3 Compressed formats shall be mentioned in the application documentation, being recommended in the fields corresponding to the file extension (e.g., "png", "jpg", "bmp").
4 Timestamp provided by the cameras are Ticks count. This can be referencing the Unix epoch or the number of Ticks since the camera is on or count of Ticks informed/in sync with the PTP server.
5 A string might be used since, in the PTP standard, the Tick count is expected to be an 80-bit number. However, the current Genicam protocol returns a 64-bit integer. A string will be more reliable for future implementations.
6 Cameras capable and with PTP enabled must inform the PTP synchronization status in the metadata. E.g.,
…
"metadata": "{'ptpstatus': 'locked'}"
…
Metadata Example:
{
"version": "1",
"count": 2,
"timestamp": "2014-01-09T13:35:34.000000000+0100",
"customfields": "{'xfield1':1,'xfield2':'abc'}",
"detail":[
{
"id":"mycamera_0_2014-01-09T13:35:34.000000000+0100",
"seq": 3,
"height": 60,
"width": 80,
"format": "png",
"formatns": "Compressed",
"timestamp": "123456",
"metadata": "{'batchid':'batch1','stream':'lowdef'}"
},
{
"id":"mycamera_1_2014-01-09T13:35:34.000000000+0100",
"seq": 3,
"height": 852,
"width": 1280,
"formatns": "Genicam",
"format": "BGR8",
"timestamp": "123456",
"linepadding": 0,
"metadata": "{'batchid':'batch1','stream':'raw'}"
}
]
}
Camera Operation¶
Camera Discovery¶
As the initial step to establish communication, it is necessary to check the available cameras on the connector. To achieve this, the connector shall be capable of discovering cameras (e.g., GigE cameras) and listing them for the user.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value EnumerateDevices |
{
"TransactionID": "123456",
"Action": "EnumerateDevices"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
DeviceList | No | Array of Camera Devices | Array of camera devices. |
Camera Object
Field | Optional | Type | Description |
---|---|---|---|
SerialNumber1 | Yes | string | Camera identification |
UserDefinedName1 | Yes | String | Camera User-defined name |
ModelName | No | String | Camera model |
VendorName | No | String | Camera vendor |
Interface | No | String | Camera interface U3V (USB3 Vision), CXP (CoaXPress), GEV (GigEVision), CamEmu (Emulation) |
IPAddress | Yes | String | Camera IP address |
{addtional identification fields}1 | Yes | String | Addtional device identification offered by the connector application. |
1 Device identification, must be informed on the documentation if they can be used as device identification or if there is additional fields that can be used.
{
"TransactionID": "123456",
"ReturnCode": 0,
"Message": "Cameras found.",
"DeviceList": [
{
"SerialNumber": "548451887",
"UserDefinedName": "MyCam1",
"ModelName": "Camera Model 1234",
"VendorName": "The camera Factory",
"Interface": "GEV",
"IPAddress": "192.168.0.1"
}
]
}
Open Camera Connection¶
Usually, Genicam cameras demand the connection to be open before starting to set parameters and image streaming. This connection is an exclusive access, meaning that no other app can access the camera and change parameters or stream images.
A camera can be opened by specifying an identification string in the DeviceID field. The connector will then try to find a matching camera by searching for this identification string amongst the infos of the available cameras. The order in which it searches is the following:
- SerialNumber
- IPAddress
- UserDefinedName
- ModelName
- VendorName
- Interface
Example: An identification string is provided in the DeviceID field. Then the connector will first try to find a camera with a matching SerialNumber. If none was found it will try to find a camera with a matching IPAddress. It will continue until a matching camera can be found and try to open this camera.
If multiple cameras are found matching the same info then the connector will try to open the first one (it is up to the connector which camera is the first one).
If a camera was opened using a certain identification string then this identification string must be used in all DeviceID fields of all requests regarding this camera until it is closed again. A camera can't be opened with multiple identification strings at the same time.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value OpenDevice |
DeviceID | No | String | Device identification. |
{
"TransactionID": "1232156",
"Action": "OpenDevice",
"DeviceID": "548451887"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "123456",
"ReturnCode": 0,
"Message": "Camera open."
}
Close Camera Connection¶
To close the camera connection, releasing the exclusive access and stopping any running image streaming, releasing the camera.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value CloseDevice |
DeviceID | No | String | Device identification. |
{
"TransactionID": "1232116",
"Action": "CloseDevice",
"DeviceID": "548451887"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "1232116",
"ReturnCode": 0,
"Message": "Camera closed."
}
Camera Parameter Configuration¶
Retrieving Parameter List¶
A list of parameters shall be provided when requested by the application user. To request the parameter list, the user shall send the following message.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value GetParameters |
DeviceID | No | String | Device identification. |
ParameterList | No | Array of String | The list of parameters that shall be read. |
{
"TransactionID": "2345645",
"Action": "GetParameters",
"DeviceID": "548451887",
"ParameterList": [
"Width",
"Height"
]
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
ParameterList | No | Parameter Object Array | Parameter Object Array containing the parameters details |
Parameter Object
Field | Optional | Type | Description |
---|---|---|---|
Name | No | String | Unique parameter name. |
DisplayName | Yes | String | Displayable name of the parameter for user interface. |
Type | No | String | Parameter value type. Possible values: String, Integer, Float, Enumeration, Boolean |
Value | Yes | String/Int/Float/Bool | Current defined value. On enumerations, it is the string defined. |
IntValue | Yes | Int | On enumerations, it is the integer defined. |
Readable | No | Boolean | Flag indicating if the parameter can be read. Be aware that the readable flag depends of the current camera state. |
Writable | No | Boolean | Flag indicating if the parameter can be written. Be aware that the writable flag depends of the current camera state. |
Minimum | Yes | Int/Float | Minimum allowed value for numeric type parameters |
Maximum | Yes | Int/Float | Maximum allowed value for numeric type parameters |
Increment | Yes | Int/Float | Allowed increment for the parameter. |
EnumEntries | Yes | Enum Entries Array | Array containing the entries available for the parameter. This is used by parameters that use enumerations. |
Enum Entries
Field | Optional | Type | Description |
---|---|---|---|
DisplayName | Yes | String | This represents the name of the property to the user |
Value | No | String | Parameter value that needs to be used to set the parameter value |
IntValue | No | Int | Integer value of the enum entry |
Description | Yes | String | Enum entry description. |
{
"TransactionID": "2345645",
"ReturnCode": 0,
"Message": "Parameters read successfully",
"ParameterList": [
{
"Name": "Width",
"DisplayName": "Width",
"Type": "Integer",
"Value": 1024,
"Writable": true,
"Minimum": 1,
"Maximum": 4096,
"Increment": 1
},
{
"Name": "PixelFormat",
"DisplayName": "Pixel Format",
"Type": "Enumeration",
"Value": "Mono8",
"IntValue": 17301505,
"Writable": true,
"EnumEntries": [
{
"DisplayName": "Mono 8",
"Value": "Mono8",
"IntValue": 17301505,
"Description": "This enumeration value sets the pixel format to Mono 8."
},
{
"DisplayName": "Mono 10",
"Value": "Mono10",
"IntValue": 17825795,
"Description": "This enumeration value sets the pixel format to Mono 10."
},
{
"DisplayName": "Mono 12",
"Value": "Mono12",
"IntValue": 17825797,
"Description": "This enumeration value sets the pixel format to Mono 12."
},
{
"DisplayName": "Mono 16",
"Value": "Mono16",
"IntValue": 17825799,
"Description": "This enumeration value sets the pixel format to Mono 16."
}
]
}
]
}
Setting Camera Parameters¶
To set the parameters, the user can send the message described in this chapter. It is possible to update a range of parameters; however, any error that may occur shall return the camera to the original state without applying any modification.
Enumerations parameter types might be also defined using the human-readable value. For example, setting the pixel format using the value as Mono8, despite the enumeration integer value.
For String and Integer parameters, the connector expects an exact match for the set value. For float parameters, a difference of no more than 1% is allowed due to floating-point comparison. If the provided value falls outside the expected range, the setting call will return an error.
The list of set values will be returned in the response message.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value SetParameters |
DeviceID | No | String | Device identification. |
ParameterList | No | Parameter Object Array | Object to encapsulate the parameters to update. |
Parameter Object
Field | Optional | Type | Description |
---|---|---|---|
Name | No | String | Unique Parameter Name2 |
Value1 | No | String/Int/Float/Bool | New value |
1On enumerations, it can be the integer value or can also be the symbolic name, refer to IntValue Retrieving Parameter List. 2While it is recommended to use the unique parameter name, retrieved in Retrieving Parameter List, applications may implement abbreviated parameter names as shortcuts to simplify the parameter settings or shortcuts to access multiple node maps. These shortcuts should be documented in the connector documentation.
{
"TransactionID": "123567",
"Action": "SetParameters",
"DeviceID": "548451887",
"ParameterList":[
{"Name": "Width", "Value": 800},
{"Name": "Height", "Value": 600},
{"Name": "PixelFormat", "Value": "Mono8"} //Setting using the human readable string. This could be also the correspondent enum integer.
]
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
ParameterList | No | Parameter Object Array | Object to encapsulate the parameters to update. |
Parameter Object
Field | Optional | Type | Description |
---|---|---|---|
Name | No | String | Unique Parameter Name2 |
Value | No | String/Int/Float/Bool | New value |
{
"TransactionID": "123567",
"ReturnCode": 0,
"Message": "Paramters updated.",
"ParameterList":[
{"Name": "Width", "Value": 800},
{"Name": "Height", "Value": 600},
{"Name": "PixelFormat", "Value": "Mono8"}
]
}
Camera Quick Settings¶
Additionally to the parameters settings, the quick setting feature provides a way to quickly define the most commonly used parameters. These parameters use common known names, and the connector is expected to map them internally to the camera correspondent parameter.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value SetQuickParameters |
DeviceID | No | String | Device identification. |
Width | Yes | Integer/String | Image width1 |
PixelFormat | Yes | Integer/String | Pixel format1,2 |
Height | Yes | Integer/String | Image Height1 |
Gain | Yes | Float/Int/String | Gain1. The string Auto can be used to activate automatic gain. |
ExposureTime | Yes | Float/Int/String | Exposure time in microseconds1. The string Auto can be used to activate automatic exposure. |
1 Camera dependent values, invalid values shall be informed on the returning error message. 2 Genicam standardized Pixel Format, according with the Genicam Naming Convention as described in section 4.35 GenICam_PFNC_2_4.pdf.
{
"TransactionID": "23456435",
"Action": "SetQuickParameters",
"DeviceID": "548451887",
"Width": 800,
"Height": 600,
"Gain": "Auto",
"PixelFormat": "Mono8",
"ExposureTime": 234.5
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "23456435",
"ReturnCode": 0,
"Message": "Paramters updated."
}
Camera User Settings¶
The Genicam protocol allows the user to store parameter sets on the camera, and the connector must allow the user to save, load, and define the default user configuration to be used on camera restart.
Get Available Saved User Sets¶
Retrieve the available usersets on the camera.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value GetUserSets |
DeviceID | No | String | Device identification. |
{
"TransactionID": "1232116",
"Action": "GetUserSets",
"DeviceID": "12323454754"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
UserSetList | User Set Object Array | Object containing the available parameter settings |
User Set Object
Field | Optional | Type | Description |
---|---|---|---|
DisplayName | Yes | String | This represents the name of the user set to the user |
Value | No | String | Parameter value that needs to be used to set the user set value |
IntValue | No | Int | Integer value of the user set |
Description | Yes | String | User set description. |
{
"TransactionID": "12323454754",
"ReturnCode": 0,
"Message": "Userset retrieved.",
"UserSetList": [
{
"DisplayName": "Default User Set",
"Value": "Default",
"IntValue": 0,
"Description": "The default factory set can be loaded."
},
{
"DisplayName": "User Set 1",
"Value": "UserSet1",
"IntValue": 1,
"Description": "User set 1 can be saved, loaded, or configured."
},
{
"DisplayName": "User Set 2",
"Value": "UserSet2",
"IntValue": 2,
"Description": "User set 2 can be saved, loaded, or configured."
},
{
"DisplayName": "User Set 3",
"Value": "UserSet3",
"IntValue": 3,
"Description": "User set 3 can be saved, loaded, or configured."
}
]
}
Load UserSet Configuration¶
To load a configured UserSet on the camera, the user can send the LoadUserSet message.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value LoadUserSet |
DeviceID | No | String | Device identification. |
UserSet | No | Int/String | String according with the user setting enumeration or integer when using the integer value. |
{
"TransactionID": "23423423563456",
"Action": "LoadUserSet",
"DeviceID": "548451887",
"UserSet": "UserSet2"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "1232116",
"ReturnCode": 0,
"Message": "Userset loaded."
}
Saving Configuration¶
After the camera is parametrized, the parameter set can be saved on the camera on user sets. To perform the storage, the user can send the SaveUserSet message.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value SaveUserSet |
DeviceID | No | String | Device identification. |
UserSet | No | Int/String | String according with the user setting enumeration or integer when using the integer value. |
{
"TransactionID": "489494",
"Action": "SaveUserSet",
"DeviceID": "548451842342387",
"UserSet": "UserSet2"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "489494",
"ReturnCode": 0,
"Message": "User set updated."
}
Defining Default Configuration¶
To define the camera default parameter set on the camera to be loaded in case of restart, the user can send the SetDefaultUserSet message.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value SetDefaultUserSet |
DeviceID | No | String | Device identification. |
UserSet | No | Int/String | String according with the user setting enumeration or integer when using the integer value. |
{
"TransactionID": "1232116",
"Action": "SetDefaultUserSet",
"DeviceID": "548451887",
"UserSet": "UserSet2"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "1232116",
"ReturnCode": 0,
"Message": "Default userset defined."
}
Download Camera Configuration¶
The current camera setup might be downloaded to back up and further usages. The file format might be defined on the implementation, it is not meant to be edited externally.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value GetDeviceConfig |
DeviceID | No | String | Device identification. |
{
"TransactionID": "23423456",
"Action": "GetDeviceConfig",
"DeviceID": "548451887"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
FileContent | No | String | Base64 string of the configuration file. Containing the mime type prefix. |
{
"TransactionID": "23423456",
"ReturnCode": 0,
"Message": "Success",
"FileContent": "data:text/plain;base64,IyB7MDVEOEMyOTQtRjI5NS00ZGZiLTlEMDEtMDk2QkQwNDA0OUY0fQojIEdlbkFwaSBwZXJzaXN0ZW5jZSBmaWxlICh2ZXJzaW9uIDMuMS4wKQojIERldmljZSA9IEJhc2xlcjo6QmFzbGVyQ2FtRW11IC0tIEJhc2xlciBDYW0gRW11IGludGVyZmFjZSAtLSBEZXZpY2UgdmVyc2lvbiA9IDEuMC4xIC0tIFByb2R1Y3QgR1VJRCA9IEI5N0RFNTQ5LUNCOUEtNDRmOC05MzdELTY0QzQ4QkRFQ0ZBMyAtLSBQcm9kdWN0IHZlcnNpb24gR1VJRCA9IEEyRENERTE0LTczRTQtNDA4YS1BRkE4LTgxODUyRUNCNUQ5QQpHYWluCTAuMDAwZSswMApXaWR0aAkxMDI0CkhlaWdodAkxMDQwClBpeGVsRm9ybWF0CU1vbm84CkV4cG9zdXJlVGltZQkxMDAwMC4wCg=="
}
Upload Camera Configuration¶
The stored file on section Download Camera Configuration can be provided to the camera restoring the setup. File integrity and validations are recommended and shall be implemented by the connector application.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value SetDeviceConfig |
DeviceID | No | String | Device identification. |
FileContent | No | String | Base64 string of the configuration file. Containing the mime type prefix. |
{
"TransactionID": "234423465465",
"Action": "SetDeviceConfig",
"DeviceID": "548451887",
"FileContent": "data:text/plain;base64,IyB7MDVEOEMyOTQtRjI5NS00ZGZiLTlEMDEtMDk2QkQwNDA0OUY0fQojIEdlbkFwaSBwZXJzaXN0ZW5jZSBmaWxlICh2ZXJzaW9uIDMuMS4wKQojIERldmljZSA9IEJhc2xlcjo6QmFzbGVyQ2FtRW11IC0tIEJhc2xlciBDYW0gRW11IGludGVyZmFjZSAtLSBEZXZpY2UgdmVyc2lvbiA9IDEuMC4xIC0tIFByb2R1Y3QgR1VJRCA9IEI5N0RFNTQ5LUNCOUEtNDRmOC05MzdELTY0QzQ4QkRFQ0ZBMyAtLSBQcm9kdWN0IHZlcnNpb24gR1VJRCA9IEEyRENERTE0LTczRTQtNDA4YS1BRkE4LTgxODUyRUNCNUQ5QQpHYWluCTAuMDAwZSswMApXaWR0aAkxMDI0CkhlaWdodAkxMDQwClBpeGVsRm9ybWF0CU1vbm84CkV4cG9zdXJlVGltZQkxMDAwMC4wCg=="
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "234423465465",
"ReturnCode": 0,
"Message": "Configuration loaded."
}
Application Control¶
The connector application shall allow the user to start and stop the image streaming. The control should not affect any camera property, including the trigger definitions. All camera parameter setups must be done through the parameter setup section.
Starting Streaming¶
This command is used to initiate image streaming for a specific camera. Upon activation, continuous streaming will publish images to the streaming topic (refer to Topic Structure). For triggered grabbing, the application will send images based on trigger activations configured in the parameters section.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value StartStreaming |
DeviceID | No | String | Device identification. |
{
"TransactionID": "12341263412635465",
"Action": "StartStreaming",
"DeviceID": "548451887"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "12341263412635465",
"ReturnCode": 0,
"Message": "Stream started."
}
Stop Streaming¶
This command terminates camera image streaming.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value StopStreaming |
DeviceID | No | String | Device identification. |
{
"TransactionID": "32143242356465",
"Action": "StopStreaming",
"DeviceID": "548451887"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "32143242356465",
"ReturnCode": 0,
"Message": "Stream stopped."
}
Software Trigger Image Acquisition¶
This command is used when the camera is in software trigger operation. Upon execution, it triggers image acquisition as configured on the camera. Images will be published on the image streaming topic (refer to Topic Structure).
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value SoftwareTrigger |
DeviceID | No | String | Device identification. |
{
"TransactionID": "2342546345",
"Action": "SoftwareTrigger",
"DeviceID": "548451887"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
{
"TransactionID": "2342546345",
"ReturnCode": 0,
"Message": "Trigger sent."
}
Get Application Status¶
Retrieves the connected camera list with status, streaming topic, application version, and implemented specification version.
Message Envelope For ZMQ Message
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Method payload | Binary String (UTF-8) |
payload
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
Action | No | String | Method called. Fixed value GetStatus |
{
"TransactionID": "46543214635244",
"Action": "GetStatus"
}
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
TransactionID | Yes | String | Transaction identification. |
ReturnCode | No | Integer | Message code following Message Codes. |
Message | Yes | String | Response message |
ApplicationVersion | No | String | Connector application version |
SpecificationVersion | No | String | Specification version of the connector |
DeviceList | No | Array of Camera Object | Array of camera objects |
Camera Object
Field | Optional | Type | Description |
---|---|---|---|
DeviceID | No | String | Current camera identification |
StreamingTopic | No | String | Topic where the camera streams images |
Status | No | String | Camera status. Possible values: Connected, Streaming, Error |
{
"TransactionID": "46543214635244",
"ReturnCode": 0,
"Message": "Success.",
"ApplicationVersion": "1.0.1",
"SpecificationVersion": "1.0.0",
"DeviceList":
[
{
"DeviceID": "548451887",
"StreamingTopic": "548451887/stream",
"Status": "Streaming"
}
]
}
Application Feedback¶
Message Codes¶
For the responses, the following message code are expected.
Info message codes¶
Value range for info messages: 0x00000000 ... 0x00FFFFFF
Message Codes | Meaning |
---|---|
0x00000000 | Request was completed successfully |
0x00000001 | Application is online |
0x00000002 | Application is offline |
Warning message codes¶
Value range for warning messages: 0x01000000 ... 0x01FFFFFF
Message Codes | Meaning |
---|---|
0x01000000 | A request was only partially successful |
Debug message codes¶
Value range for debug messages: 0x02000000 ... 0x02FFFFFF
Error message codes¶
Value range for error messages: 0x03000000 ... 0x03FFFFFF
Message Codes | Meaning |
---|---|
0x03000000 | Error while parsing a request |
0x03000001 | Error while handling a request |
0x03000002 | An opened device was removed |
Application Logging¶
The application log is expected to be published on the logging topic, any general application log which are not direct responses to any given command, like application unhandled errors, cameras error messages and camera connectivity issues.
Response
Frame | Field | Description | Type |
---|---|---|---|
1 | payload | Response object | Binary String (UTF-8) |
Response Object
Field | Optional | Type | Description |
---|---|---|---|
Timestamp | Yes | String | Application host date and time on ISO8601 format, when the message was created. |
Code | Yes | Integer | Message code following Message Codes. |
Level | No | String | Log level - Debug, Info, Warning, Error |
Message | No | String | Response message |
{
"Timestamp":"2014-01-09T13:35:34.000000000+0100",
"Code": 50331650,
"Level":"Error",
"Message":"Lost connection with myCam1"
}
