Connectivity Check

The Edge device interface, aimed at identifying and resolving connectivity issues between the Industrial Edge Device and either Industrial Edge Management or external data sources.

This feature performs an initial connectivity assessment and offers the option for a more comprehensive analysis on demand.

iem_connectivity

IEM Connectivity

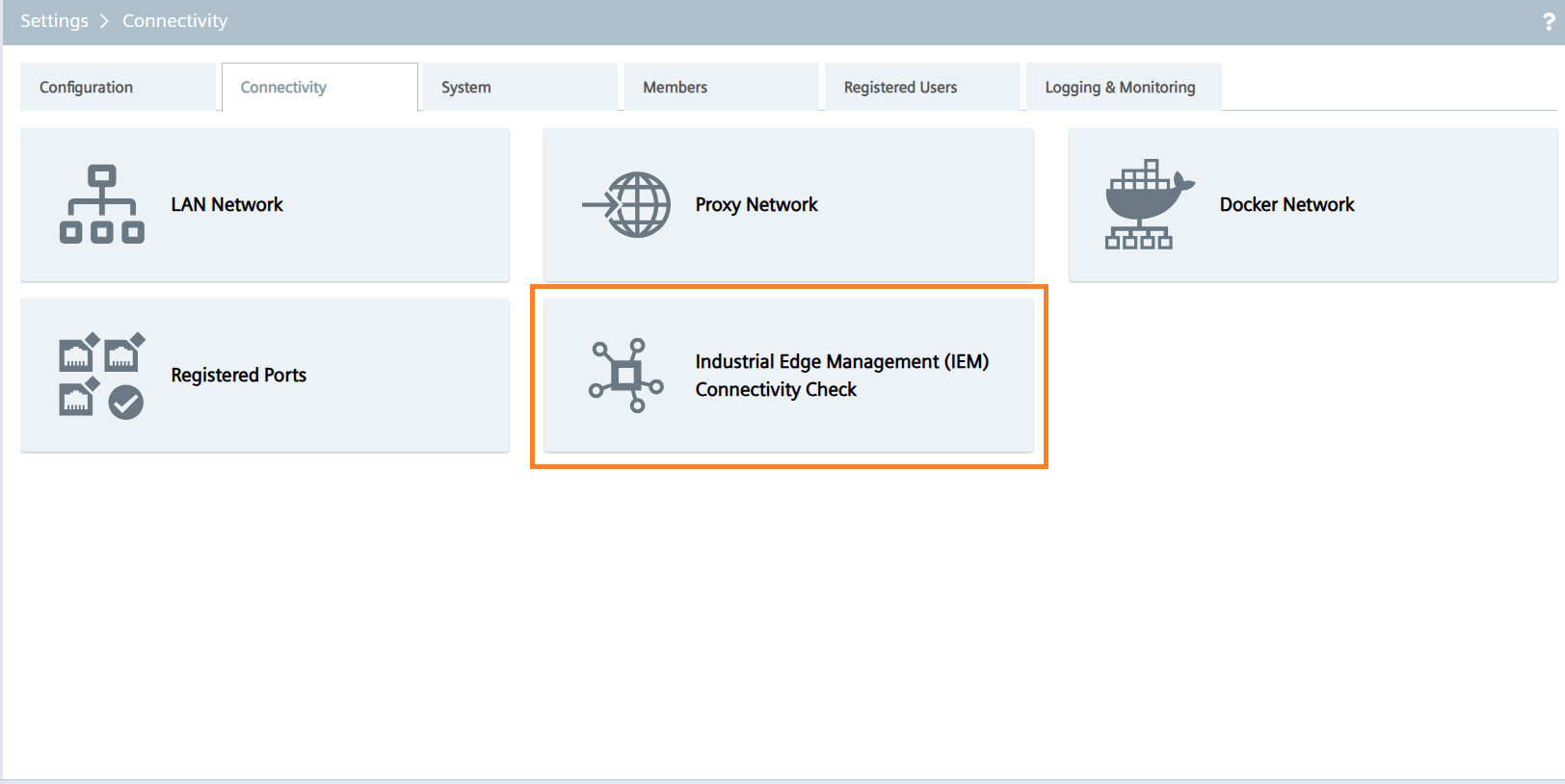

Clicking the "Connectivity Check" tile opens the Connectivity window. By default, this window shows two options:

  • Industrial Edge Management (Primary Check)
    Attempts to establish a secure HTTPS connection to Industrial Edge Management. It verifies the TLS handshake to ensure security, checks if the HTTP response status is successful (such as 200 or redirects like 3xx), and confirms that the certificate is valid and trustworthy.

  • Industrial Edge Management (Advanced Check)
    Ensures the DNS server is reachable and can successfully resolve the Industrial Edge Management hostname to its IP address. It then checks the endpoint's reachability using TCP on port 443 to ensure the connection can be established.

NOTICE

The DNS diagnose will try to resolve the IEM hostname using all configured DNS servers, and then execute a tcp connection test to the resolved IPs.

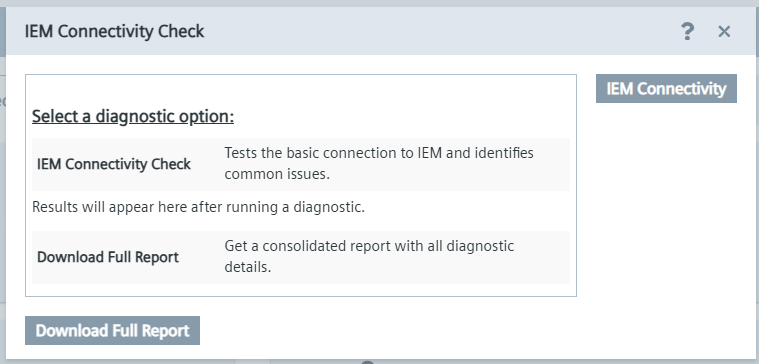

iem_connectivity_popup

Run connectivity check

Clicking the Run connectivity check button will trigger a real-time test of the connection with the IEM. You will then see a response according to the connectivity status, indicating whether it was successful or not.

An example of success response shown below along with the Download full report button.

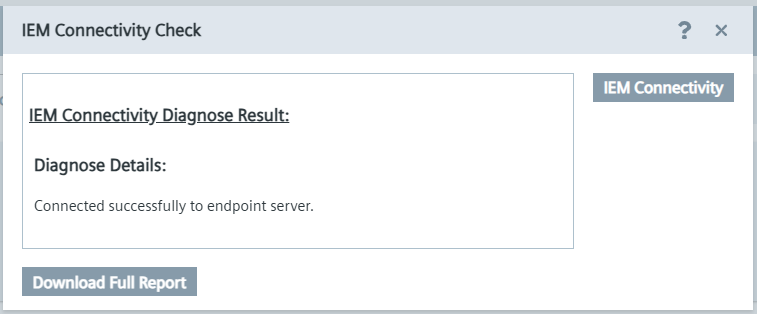

iem_connectivity_success

An example of error response shown below along with the Download full report and Retry buttons.

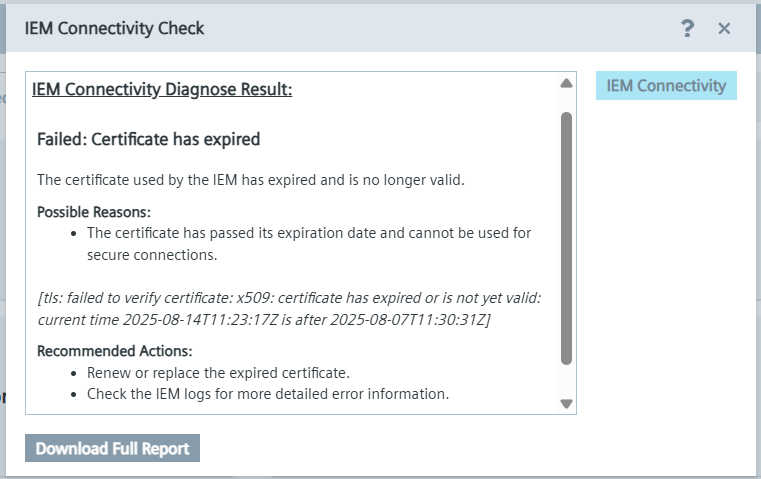

iem_connectivity_failure

Download full report

Clicking the Download full report button generates and downloads a comprehensive diagnostic report. This report includes detailed information, such as specific error messages and the response data exchanged between the Industrial Edge Device and IEM, regardless of whether the connectivity check succeeded or failed.

Retry

If a connectivity check fails, clicking the Retry button will allow you to run the connectivity test again without restarting the entire process. Clicking this button performs the same connectivity check again using the previously selected options, helping you to verify whether the connection issue was temporary or whether any network changes have resolved the problem.

NOTICE

Diagnostic results may be influenced by your network configuration, including (but not limited to) the following factors:

  • IP address spoofing settings
  • Proxy server configurations
  • Access Control Lists
  • Network routing or topology
  • Firewall settings
  • NAT/PAT configurations

Consider these aspects when evaluating diagnostic results. For the detailed report user can download the diagnose report.

NOTICE

The Connectivity Check feature is available in IEDK v1.26.0-5 or later. The enhanced UI for Connectivity Check is available starting from IEDK v1.27.0-5.
DNS check is available from the version 1.28.0-1
