Onboarding the Edge Device

Procedure

  1. Open the Edge Device UI by entering the IP address of the Edge Device in HTTPS protocol into your Internet browser, for example https://192.168.80.123.

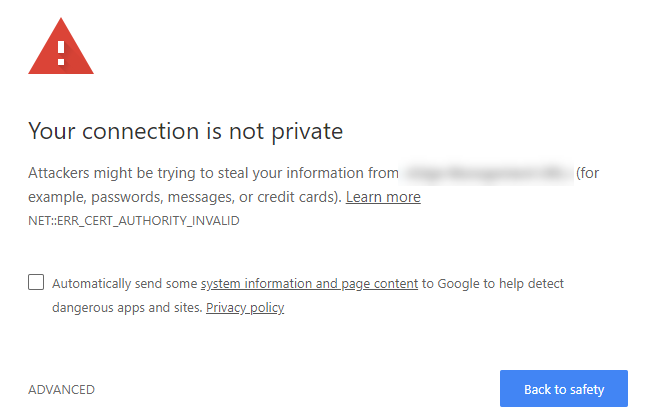

    A certificate warning is displayed.

    certificate warning

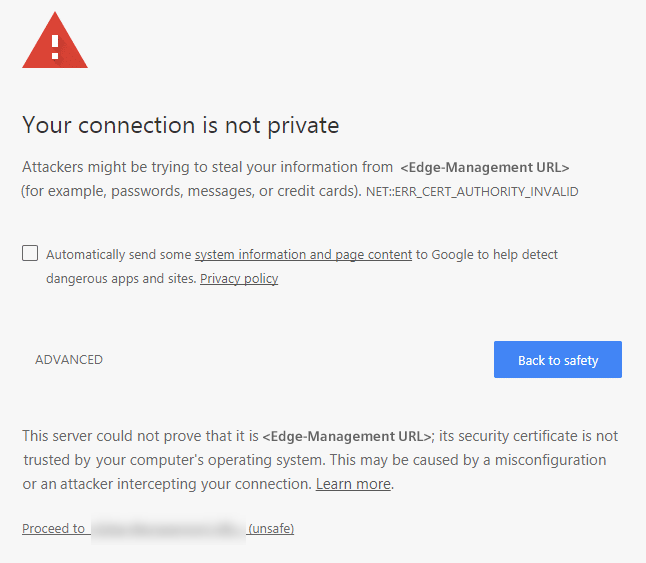

  2. Click Advanced.

  3. Click Proceed to 'IP address'.
    warning advanced

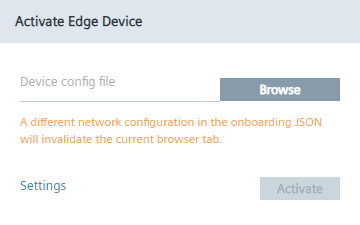

    The Activate Edge Device screen is displayed.

    activate ed

  4. Click Browse and select the created Edge Device configuration file.

  5. Click Settings to configure the following settings:

    • Network settings
    • Proxy settings
    • Docker network settings
    • System settings

    You find the procedure on how to configure each setting in the Settings subsection.

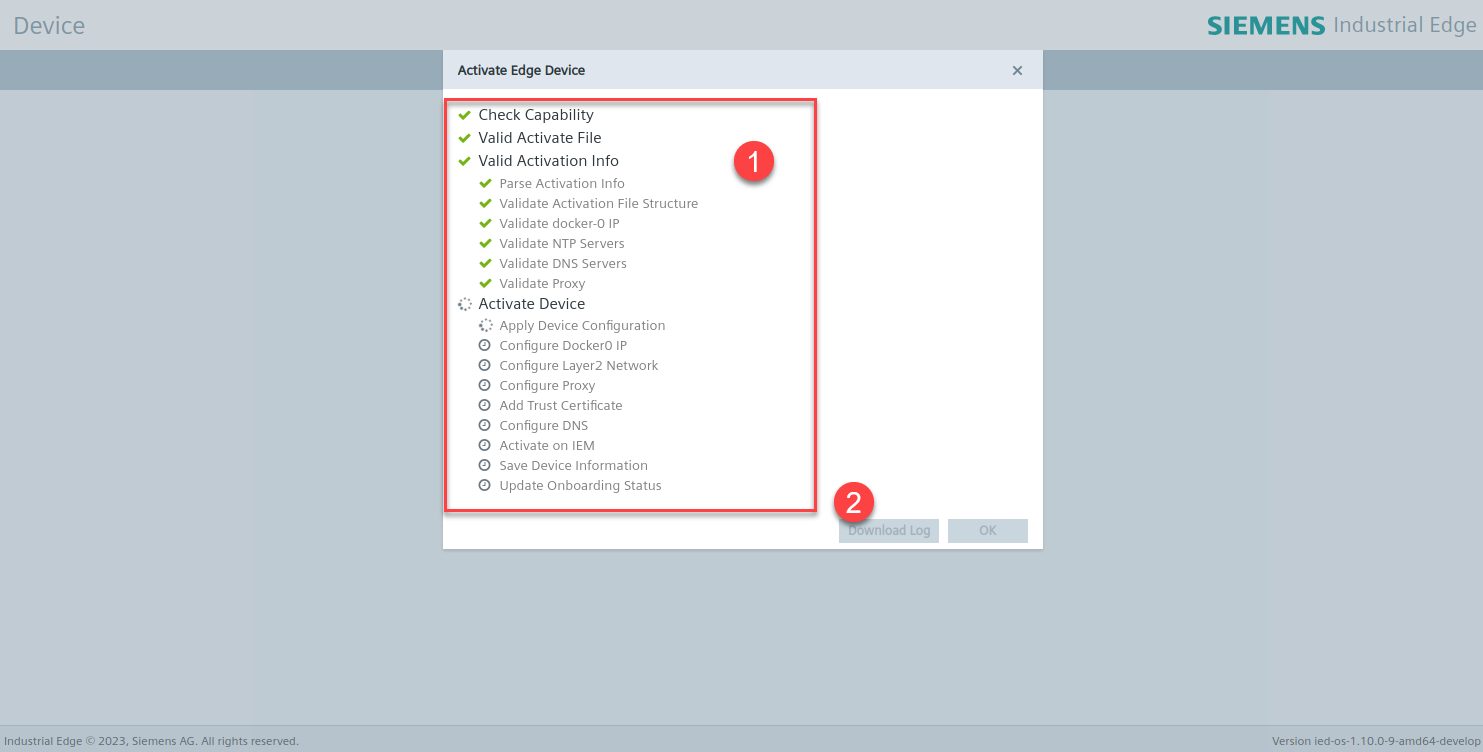

  6. After configuring the settings, click Activate. During device onboarding, a popup like the one below will appear.

    activation steps

    No. Items
    ① List all device onboard steps
    ② Download device onboard log. Button is enabled after onboard succeed/failed.

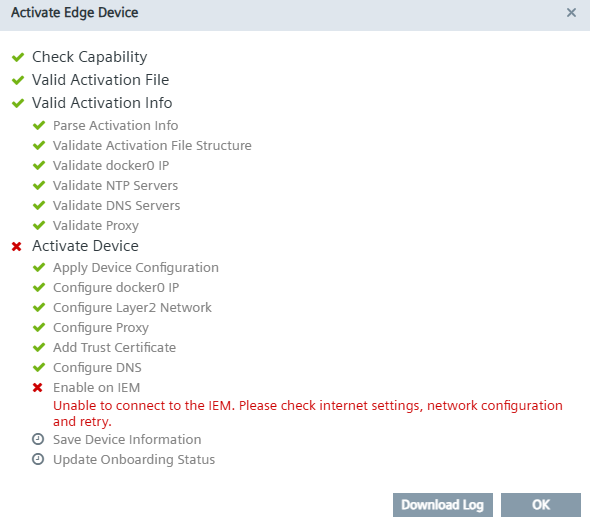

    If onboard failed, it will mark the failed step and display an error message. If onboard successful, it will mark all steps as successful. The `Download Log' button is enabled after the device onboard process has either failed or succeeded.

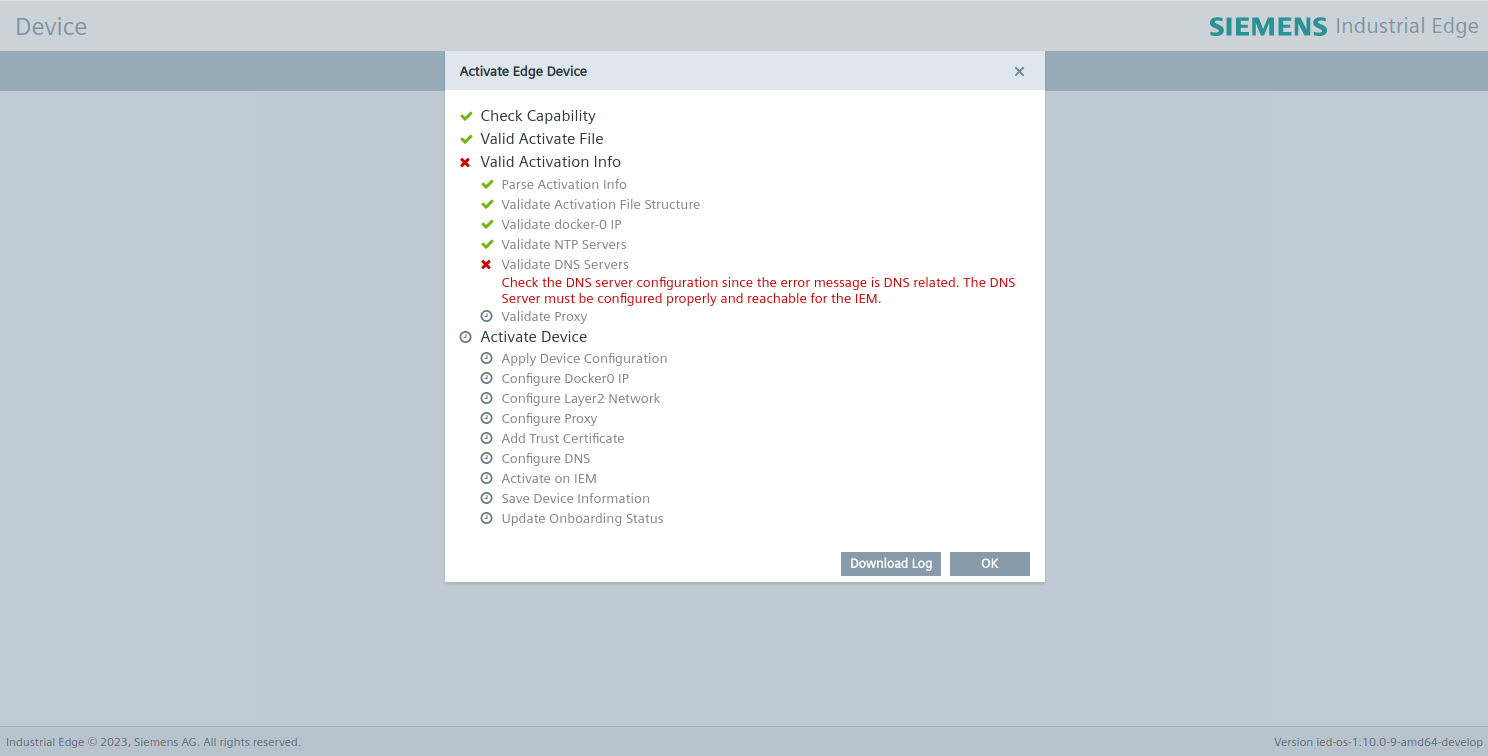

    activation failed

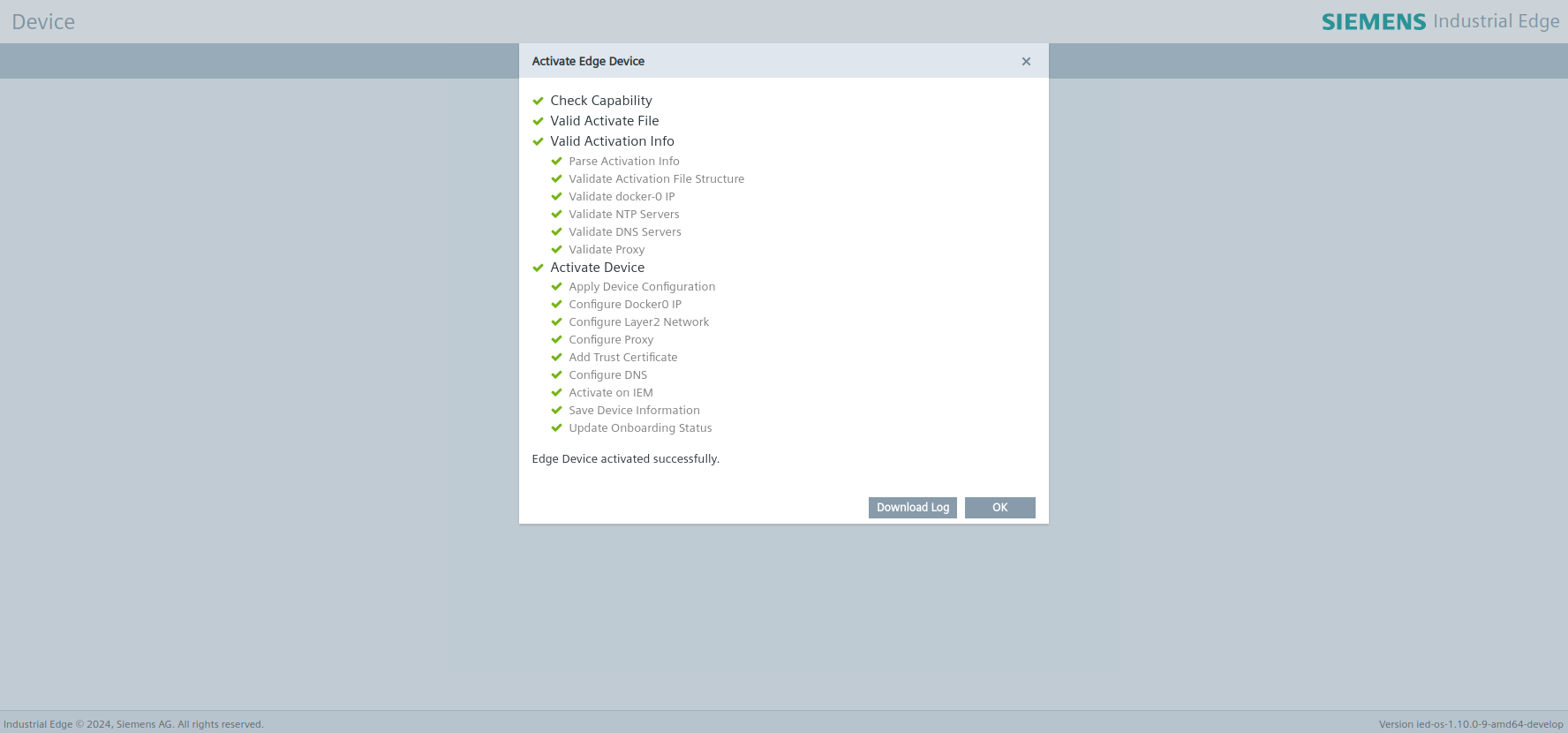

    activation succeed

  7. Click Ok.

    You will be redirected to the Edge Device UI.

    NOTICE

    Connection successful
    When the Edge Device is connected successfully to the IEM, the status indicator at the top of the Edge Device tile in the IEM switches to green and the IP address of the Edge Device is displayed under the name of the Edge Device.

  8. Sign in with your email address and password that you have entered in the New Edge Device screen.

    The home page of the Edge Device UI is displayed.

NOTICE

When you onboard a SIMATIC IPC Edge Device, you also have the possibility to onboard it via a USB flash drive. You find the procedure and additional information on this procedure in the SIMATIC IPC Industrial Edge Device - Operation manual.

NOTICE

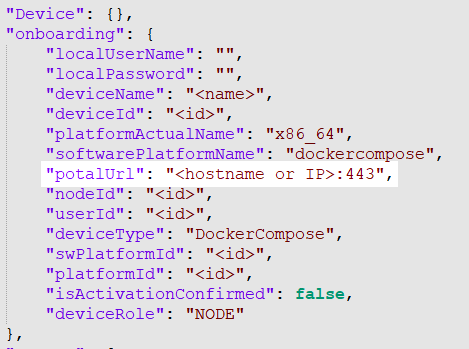

To onboard a SIMATIC IPC Edge Device with firmware version < ied-os-1.2.0-56 to an IEM, you have to modify the onboarding file. Please open it in an editor like Notepad++ and add the port 443 to the parameter "potalUrl". Below is an example.
Onbaording file workaround modification
