Firmware Artifact Storage Management

Users can monitor available storage, manage artifacts, and track deletion processes through the firmware artifact interface.

These artifacts are downloaded and reused for identical devices.

Storage Usage

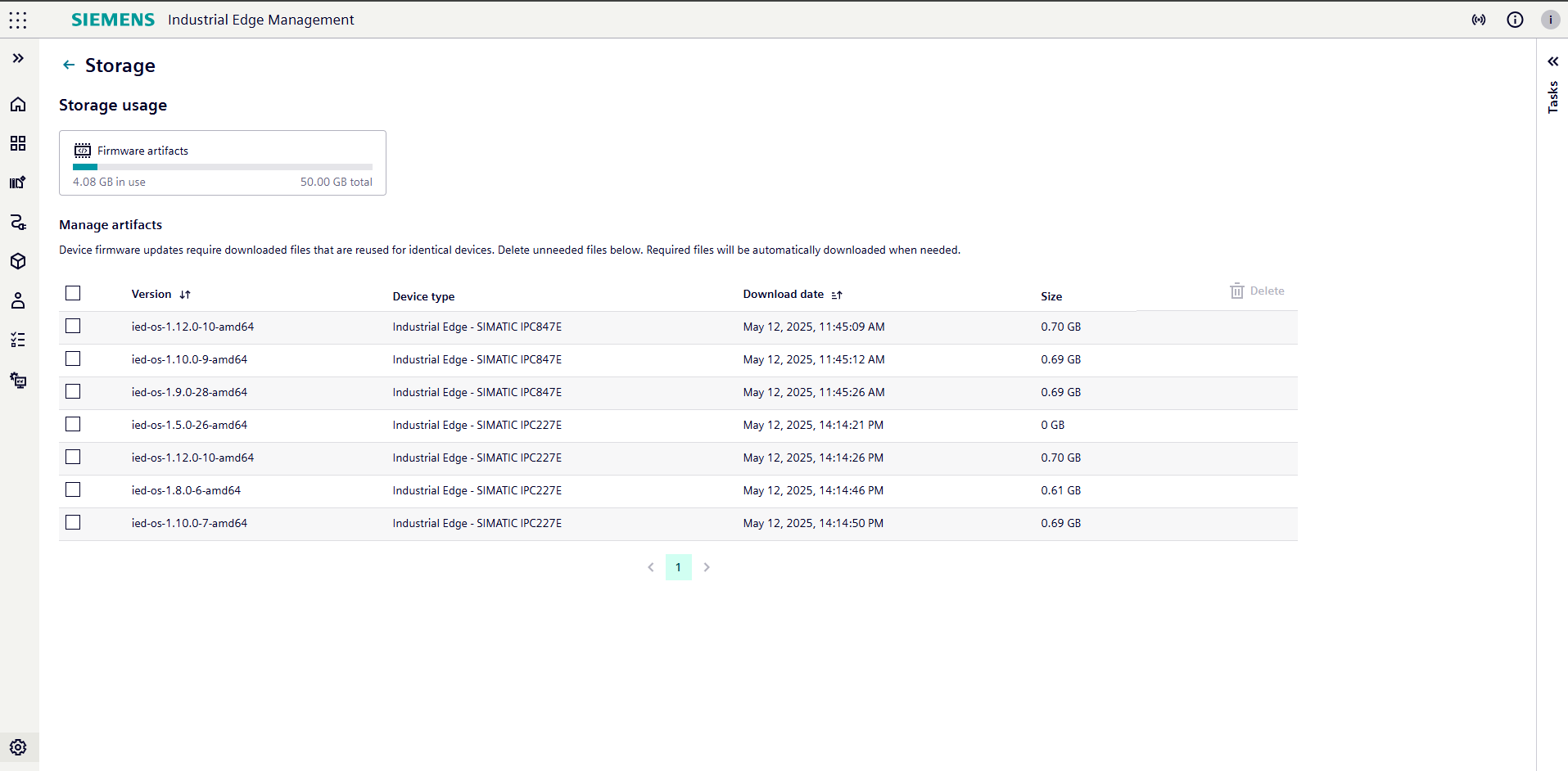

Through the 'Storage Usage' interface, users can monitor the remaining and total storage capacity for firmware artifacts.

Manage Artifacts

The Manage Artifacts section provides detailed information about each firmware artifact, including:

  • Version
  • Device type
  • Download date
  • Size

images/storage_menu.png

Deleting Artifacts

To delete an artifact:

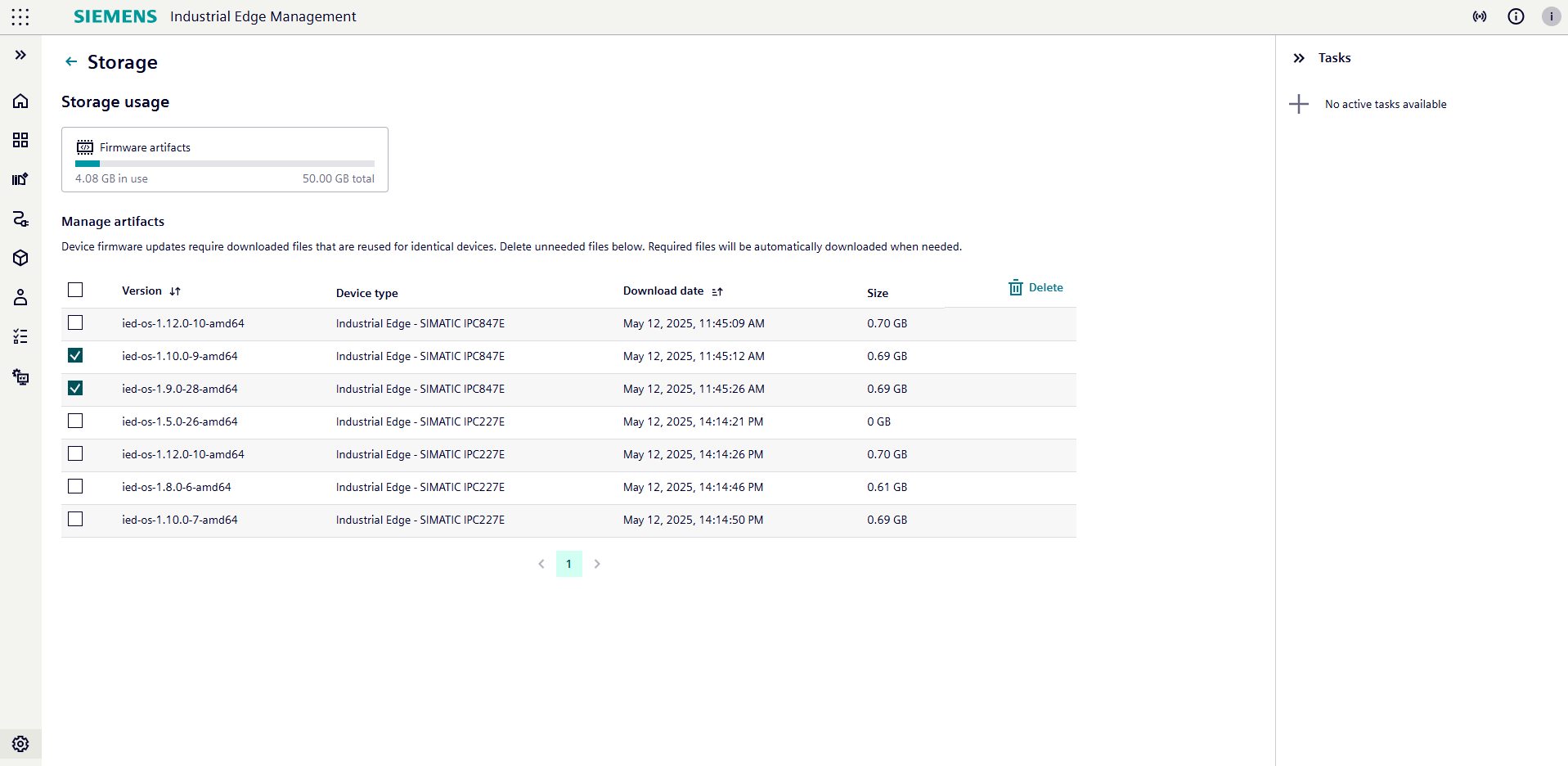

  1. Select the desired artifact(s) using the checkbox.

  2. Click the Delete button.

images/artifacts_selected.png

NOTICE

You can select multiple artifacts for deletion using the checkbox.

After deletion, a task will be created for each selected artifact.

Monitoring Deletion Progress

Each deletion task appears as a card in theTasks` tab on the right side of the screen.

  • Multiple tasks generate individual cards.
  • Scroll through the cards to monitor progress.

Click the down arrow at the top right of the card to expand it and view detailed information.

If the deletion process encounters an error, the status changes to Failed, and users can view the reason for the failure by expanding the card. Users can then attempt to delete the file again by clicking the Retry button within the expanded card.

images/expanded_with_fail_message.png

A task card can be removed if the task is finished or failed. To delete a card, click the trash can icon in the top right corner of the card.
