Admin UI - Overview

The Admin UI provides additional functionality to configure the IEM. Also, the Admin UI gives an overview about the whole system, for example how many Edge Devices are connected to the IEM or which users have access to the IEM.

Opening and closing the Admin UI

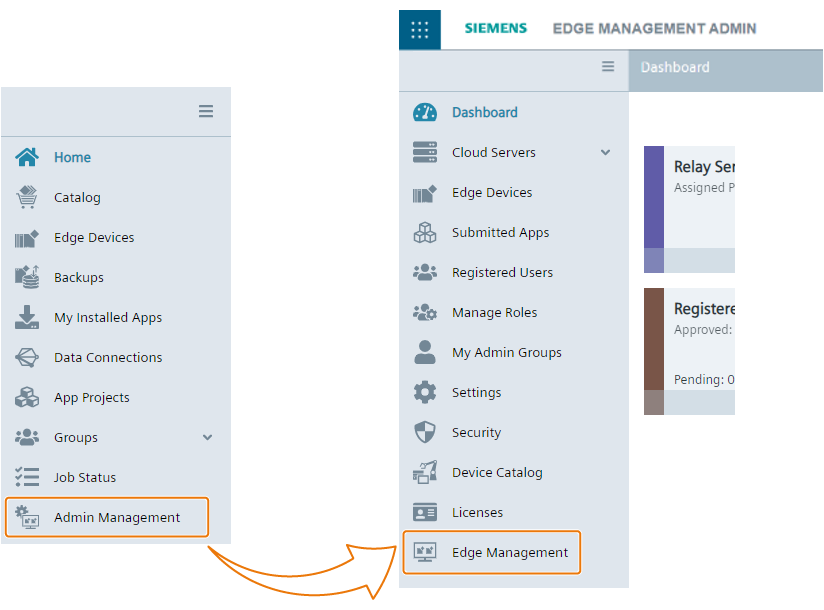

Only the admin of the IEM and users with the according permissions can open the Admin UI. For the admin and these specific users, the Admin Management menu item is enabled in the navigation menu. By clicking this menu item, the Dashboard screen of the Admin UI will be opened. To close the Admin UI and to return to the Management UI, click the Edge Management menu item.

Alerts

By clicking the bell.png icon in the header of the Admin UI, the Alerts screen is displayed. This icon is only available for the admin of the IEM.

The Alerts screen displays, for example, the following alerts and notifications:

  • Certificate expiry alerts, for the IEM and for the Registry server Certificate updated alerts.
  • Invalid certificate alerts, for example if certificate start date is after current date.
  • Certificate expired alert, for example if certificate is expired and the Edge Device owner has not responded for 15 days.

Accept invitations

When you are not the admin of the IEM but have admin permissions, the bell.png icon is displayed instead of the accept_invitation.png icon in the header of the Admin UI. This icon is used to accept invitations and join other groups in which you are invited. By clicking this icon, enter the invitation code you received to join a group.

To navigate within the Admin UI, use the navigation menu on the left. The navigation menu consists of the following menu items:

  • Dashboard
  • Edge Devices
  • Submitted Apps
  • Registered Users
  • Manage Roles
  • My Admin Groups
  • Settings
  • Security
  • Device Catalog
  • Licenses
  • Edge Management
